Mobile Roughness Measuring Device

"SMAHRT Surf" – simple, smart and mobile

Compact roughness measuring instrument for mobile use
Simple and intuitive to use: as easy as using a smart phone
Large, illuminated 4.3" TFT touch display
Adjustable display
Data backup as TXT, X3P, CSV or PDF file
Create complete PDF measuring records directly in the measuring instrument
Customized comments for the PDF measuring record can be entered directly into the MarSurf PS 10
Mains-independent operation: Over 1200 measurements without having to recharge the instrument
An all-in-one solution. Small and lightweight (approx. 500 g)
Instrument flexibility: removable drive unit
31 surface parameters: offer the same range of functions as a laboratory instrument
Roughness standard stored within housing aids in reducing errors
Quick access to your frequently used functions via the Favorites list in the display
Automatic cutoff selection, so even non-specialists can be sure of getting the correct measuring results
NEW: Additional version with transverse drive unit available as MarSurf PS 10 C2 (item number 6910235)

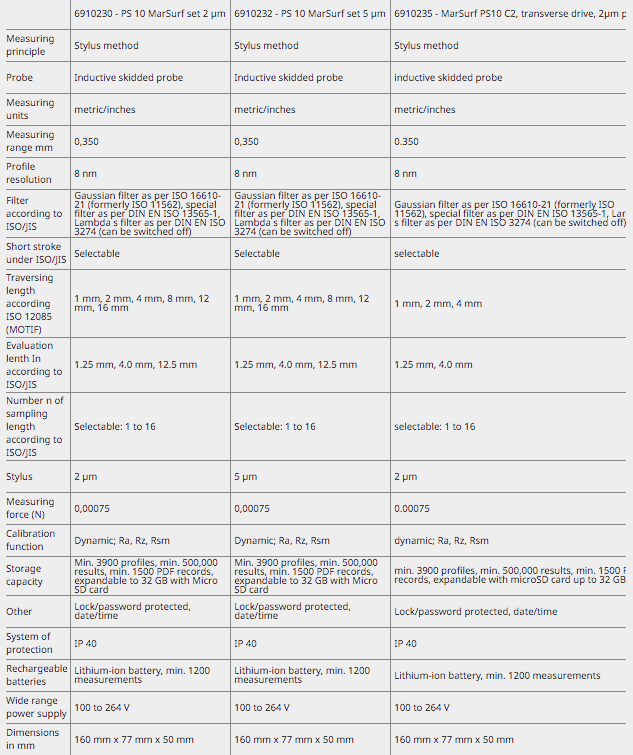

Technical Data

Applications

For shafts and housing components
For large machines
For large workpieces
For milled and turned parts
For ground and honed workpieces
On the production line or directly on the machine; ideal for rapid testing of the surface roughness of a workpiece

Shipment

MarSurf PS 10 unit
Drive unit (detachable)
1 standard probe conforming to standards
Built-in rechargeable battery
Roughness standard integrated into housing (detachable), including Mahr calibration certificate
Probe protection
Power source with 3 adapters
Operating instructions
Carry case with shoulder strap
USB cable
Extension cable for drive unit (length 1.2 m)
Height adjustment (integrated)
